The lift shaft should be provided with a permanently installed electric lighting, giving 50 lux illumination intensity, even when all the doors are closed (detailed description available in EN 81-20 / 5.2.1.4.1).

Liftern Shaft Illumination is a product segment designed strictly according to the respected standard. Dending on the shaft area, the convenient intervals and light source quantities are calculated to provide the required intensity. The light cases and cables are embedded with fixation accessories in order to fix to the shaft wall. The cables are ready just to plug in.

FEATURES

  • Code : ILL0.5 •

  • Power: 20 W (including driver) •

  • Input voltage: 220V - AC

  • Led number/PCB: 112 Low-Power LED / FR-4/ALM 1.6 mm •

  • Power multiplier – efficiency: 93% •

  • Light color temperature: 3000K-4000K-6000K Blue, Red, •

    Green (RGB) •

  • Life span: 60.000 hours •

  • Illumination angle: 225 degrees

  • IP protection class: IP44
  • CRI: 80%
  • Body material: Aluminum extrusion and eloxal,
  • polycarbon glass, plastic injection cable outlets Weight: 240 g
  • Size: L: 500 mm x W: 40 mm x D: 20 mm
  • Led Brand: Refond / ETI
  • LM Value: 2400 Warranty: 2 years

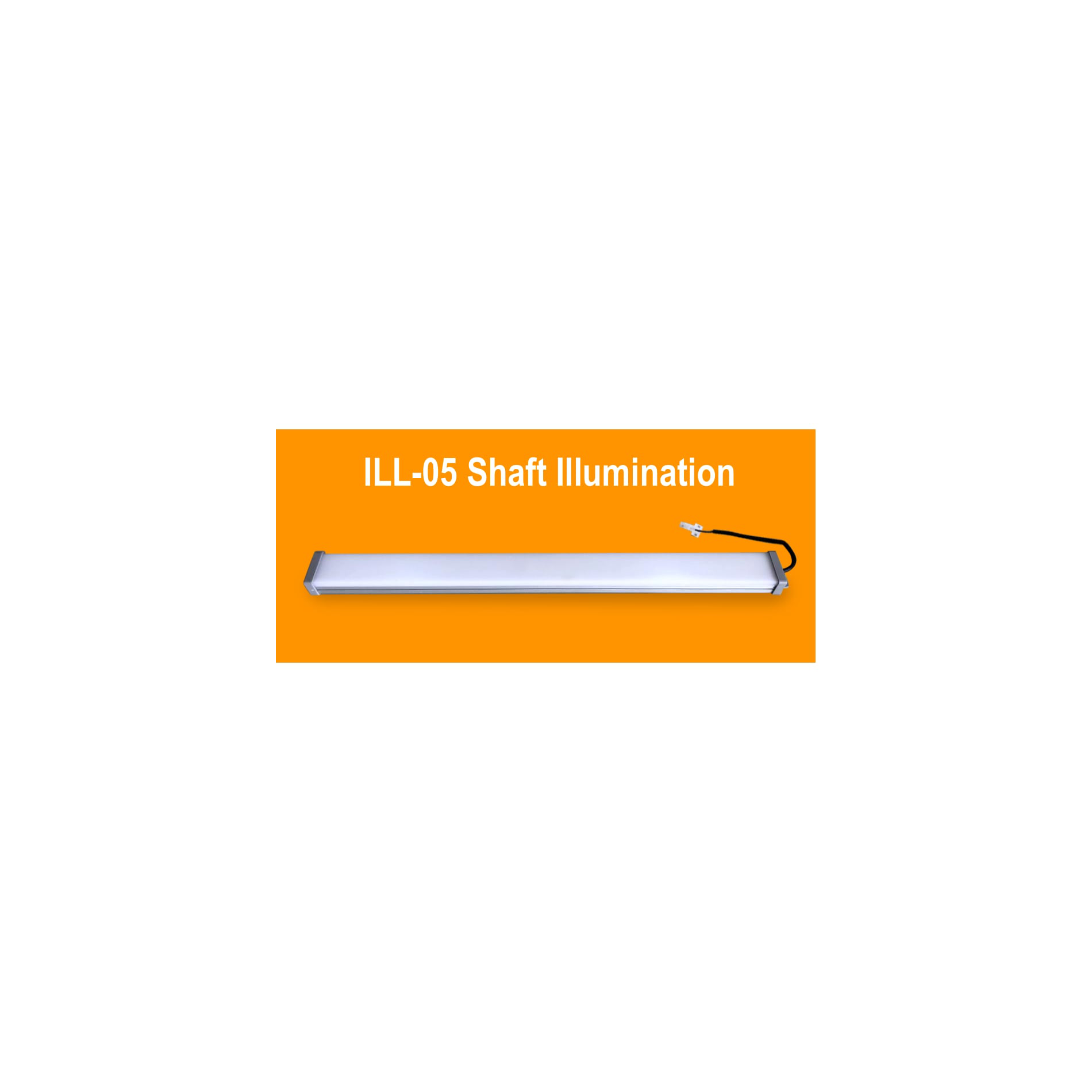

ILL-05 Shaft Illumination revealed
